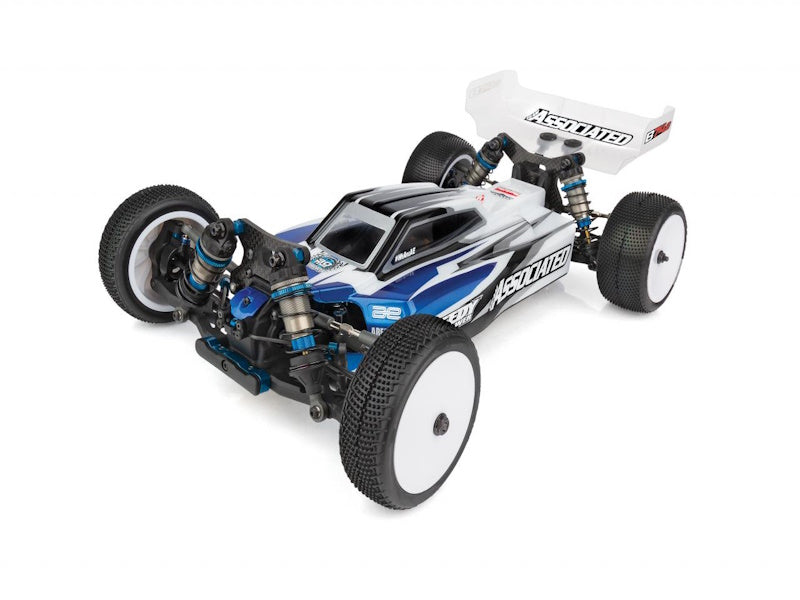

Associated 90044 RC10B74.2 Champion Edition 1/10 4WD Off-Road Electric Buggy Kit

Team Associated ASC90044 RC10B74.2 Champion Edition 1/10 4WD Off-Road Electric Buggy Kit.

ASC90044

RC10B74.2 CE Team Kit
The B74 platform is the current IFMAR World Champion, European Champion, Australian Champion, British Champion, and more! Successfully competing at the highest level world-wide has given us the insight needed to push the B74 platform a bit more. With the addition of Factory Team items and setups, the B74.2 and B74.2D Champions Edition kits are ready to add to the list of accolades!

The Champions Edition retains key features from its predecessor. The RC10B74.2 molded gearboxes front and rear lower the center of gravity by removing weight from high points of the car. The latest 13mm big bore shock technology from Team Associated keeps the RC10B74.2 at the highest level in jump and bump handling performance. The gull wing front suspension arms and the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

Required to Complete:
1:10 scale electric motor (Reedy SP5 13.5T #27481)
Electronic speed control (Reedy Blackbox 610R with Programmer #27017)
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (Reedy Zappers SG5 #27383)
Battery charger (for battery chosen above) (Reedy #27203 1416-C2L Dual AC/DC Competition Balance Charger), plus two charge leads (#27233)
2-channel surface transmitter
2-channel receiver
Steering servo (Reedy RS1610A #27154)
Lexan-specific spray paint for body
1:10 scale off-road buggy wheels and tires
Batteries for transmitter
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer (#1499) or Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, FT Shock Shaft Pliers (1681), Wire Cutters, Soldering Iron, Calipers or Precision Ruler.

Features:
Factory Team decoupled slipper clutch and related parts included
Factory Team +2 steering block arms included
Updated kit setup includes 2.5mm thick shock pistons and purple front springs
Lightweight molded gearboxes front and rear: Two fixed height front gearboxes allowing 0 and +2mm diff height options. One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options.

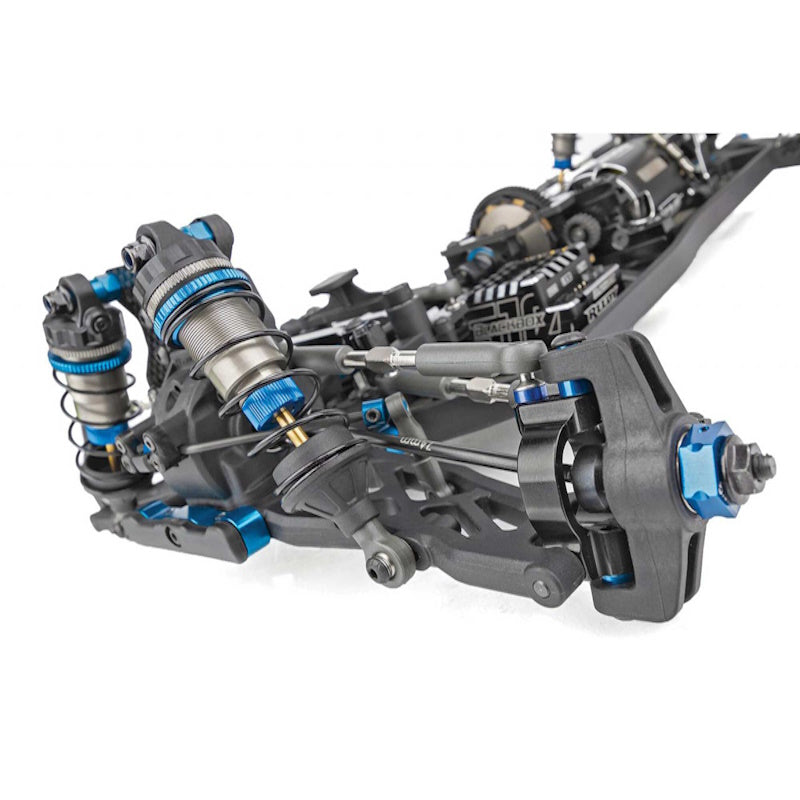

13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling

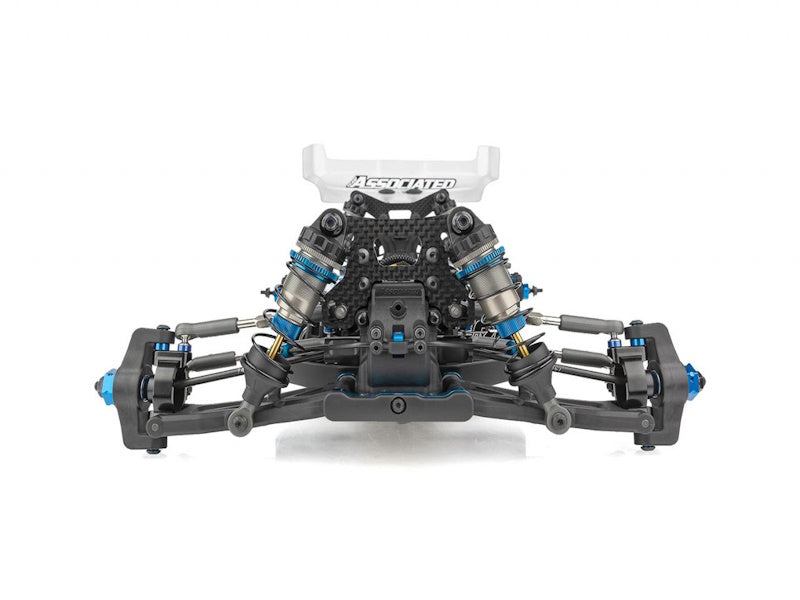

Gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability
LTC differential gear sets are included. They reduce binding under power, giving more predictable power delivery.

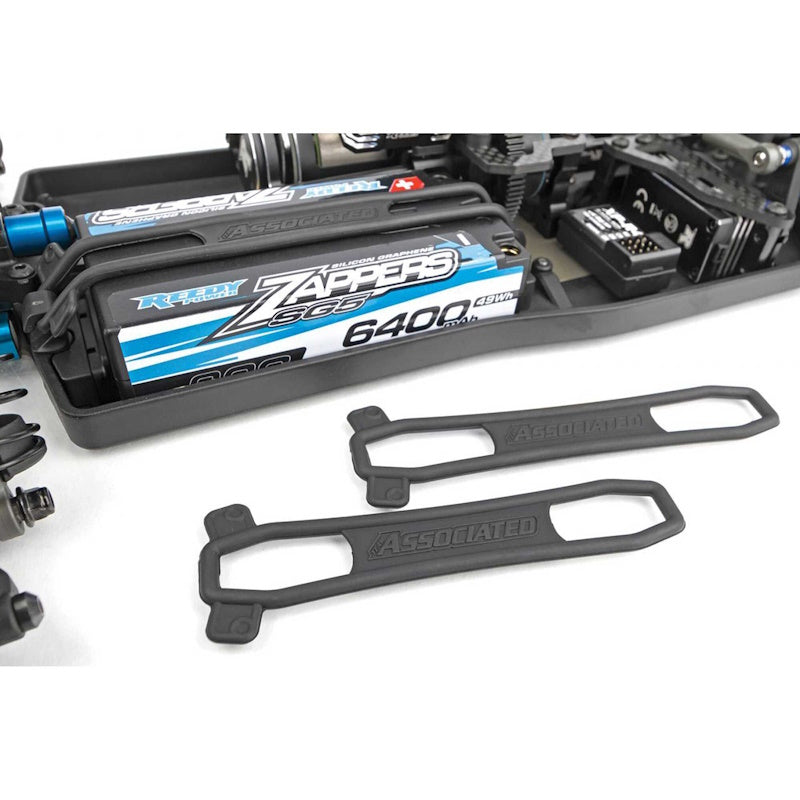

Battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs
Larger 3.5mm turnbuckles with updated rod end style ballcups to increase durability and reduce bind in the suspension

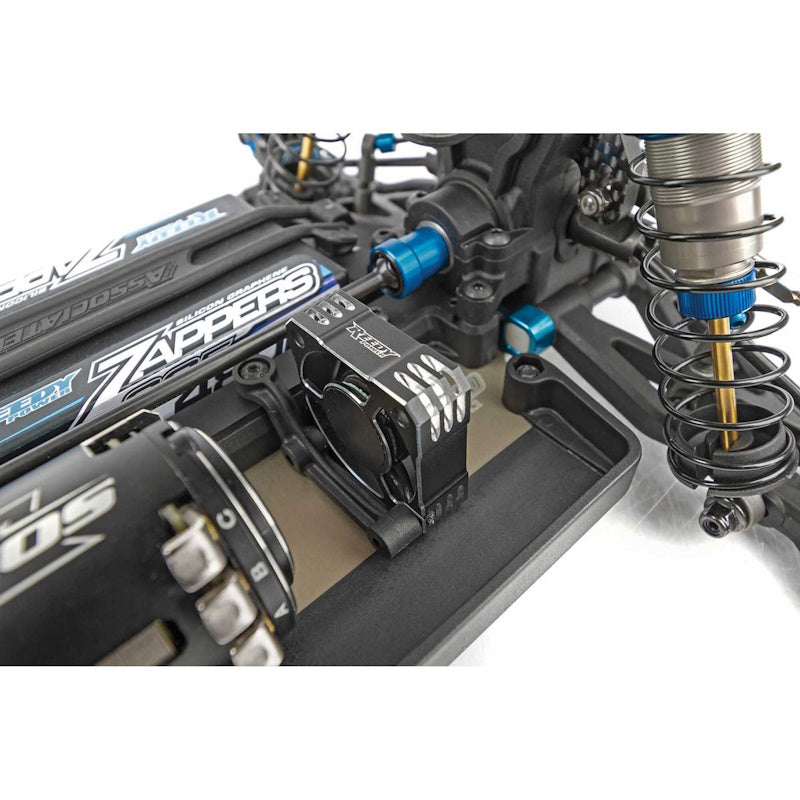

Center bulkhead fan mount that mounts the fan above the motor for better cooling performance
-2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity
2-pad high-load, high-capacity center slipper clutch with LCF pad material
+3mm aluminum steering rack for optimized bump steer at low ride heights
66mm Rear CVA drive shafts and axles for more on-power traction and more predictable driving feel.

Specifications:
Scale: 1:10
Power: Electric
Length (with wing): 395mm (15.55")
Width: Varies
Weight (chassis only): 885g (1.95lbs)
Wheelbase: 280.5-285.5mm (11.0-11.24")
Internal Gear Ratio: 2.50:1
ASC90044
