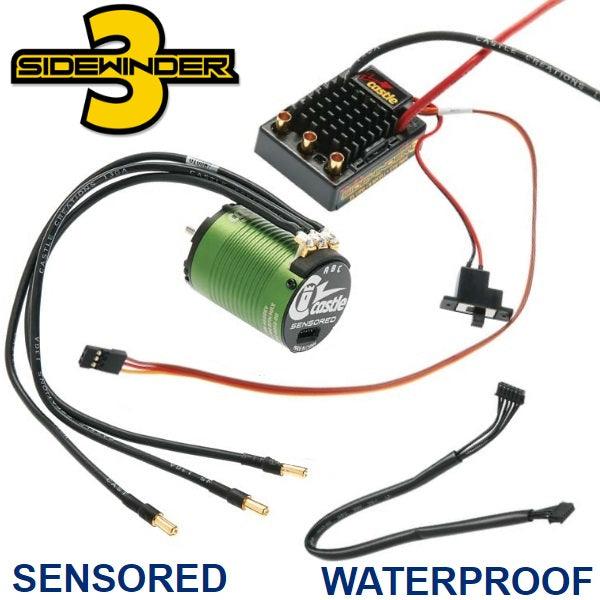

Castle Creations 010-0115-08 1/10 SV3 Sidewinder WP ESC w/ 1406-7700 Motor Combo
This is the Castle Creations Sidewinder SV3 12V Electronic Speed Control
and 1406 7700Kv Sensored Brushless Motor.
**NOT for use in 2WD or 4WD short course trucks.**
**Ideal upgrade for 1/10 scale on-road cars using 2s LiPos, may also be**
**used in some lighter off-road 1/10 scale stadium trucks and buggies**
**with conservative gearing.**
FEATURES
Sidewinder SV3 12V ESC, CSEM0115
Recommended for all 1/10 scale buggy and truggy applications that
weigh less than 5lbs (2.25kg) ready to run (not for use in heavier
vehicles such as E-Revos or E-Maxx class vehicles)
USB programming capability via Castle Link USB adapter (not included,
order CSEM6300)
Waterproof for use in nearly every environment (not intended for
operation while submerged in liquid)
Compatible with the Castle Creations 14xx series NeuCastle motors
Reversible with reverse lockout
1406 7700Kv Sensored Brushless Motor, CSEC5900
Ideal upgrade for 1/10 scale on-road cars using 2s LiPos, may also be
used in some lighter off-road 1/10 scale stadium trucks and buggies
with conservative gearing
Four magnet, four pole configuration for maximum efficiency at high
RPM
1.4" diameter slotted rotor
High quality ball bearings
INCLUDES
Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned
Leads, 4mm Female Bullets for Motor Connection, Receiver Connector
On/Off Switch, and Instructions
1406 7700Kv Sensored Brushless Motor with Sensor Wire
SPECIFICATIONS
ESC;
Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no
battery connector
Motor;
Input Voltage Range: 2S LiPo, 6-8 cell NiMH
Kv: 7700
Max. RPM: 100,000
Max. Recommended Vehicle Weight: 4lbs (1814g) with battery RTR
Length: 1.9" (49.5mm)
Diameter: 1.4" (36mm)
Weight with Wires: 6.9oz (197g)
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm Male Castle Bullet
