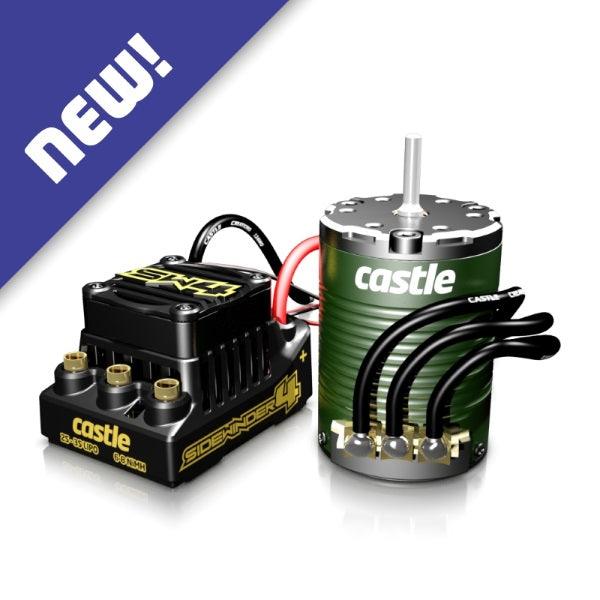

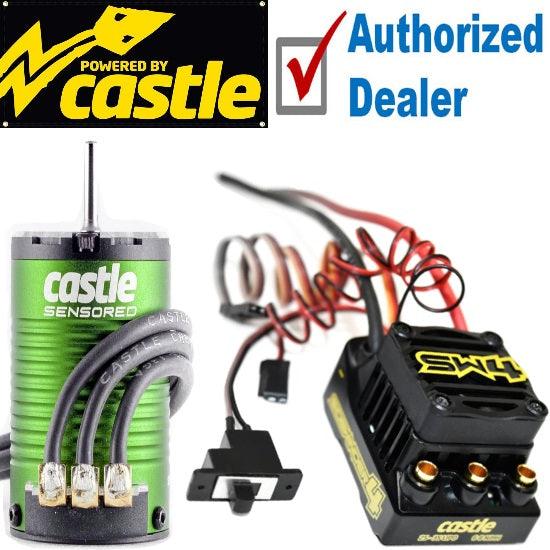

Castle Creations SW4 Sensorless WP ESC SC / SCT + 1410 3800KV Sensor Motor 5MM
The all new and improved Sidewinder 4 builds upon Castle’s most popular platform - the Sidewinder 3/SCT. The Sidewinder 4 is our first platform running Cryo-Drive technology which reduces operating temperatures in all applications. Cryo-Drive is a potent combination of software enhancements and precision fluid dynamics. The new case is designed specifically for maximum airflow from the huge 30mm fan included with the Sidewinder 4. These changes result in cooler ESC temperatures, increased runtime and power handling. All of these improvements mean you can gear more aggressively for more speed and harder/longer runs. And of course it is still waterproof** and compatible with the optional Castle Link USB programmer.
This combo includes a Sidewinder 4 ESC and 1410-3800Kv sensored* motor. The 1410-3800kv is perfect for short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
Sidewinder 4 combo includes:

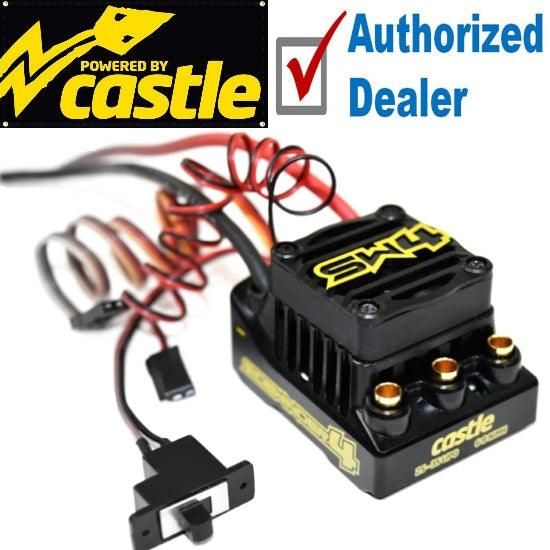

Sidewinder 4 ESC
Castle 1410-3800Kv sensored* motor
Driver's Ed and Guide Start Guide
1/10th scale gearing chart
Decal sheet
***Sensored capabilities of the motor cannot be utilized with the Sidewinder 4. If you require sensored operation you will need a sensored ESC like the Mamba X.
**Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Technical Specs
Controller
Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
BEC Specifications: 5.0 volts fixed, 2 amps.
Operating Environment: Waterproof* design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: 30mm fan included
ESC Size: L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm)
ESC Weight (w/wires): 2.26 oz. (64 g)
Connectors: 4mm female bullets for motor connection.
Motor Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g/ 8.4oz
Shaft Size: Length: 21mm
Diameter: 0.197" (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional-
Connectors: 4mm male Castle Bullet Connectors
