Team Associated ASC30134 DC10 Electric 1/10 2WD Drift Car Kit

ASC30134

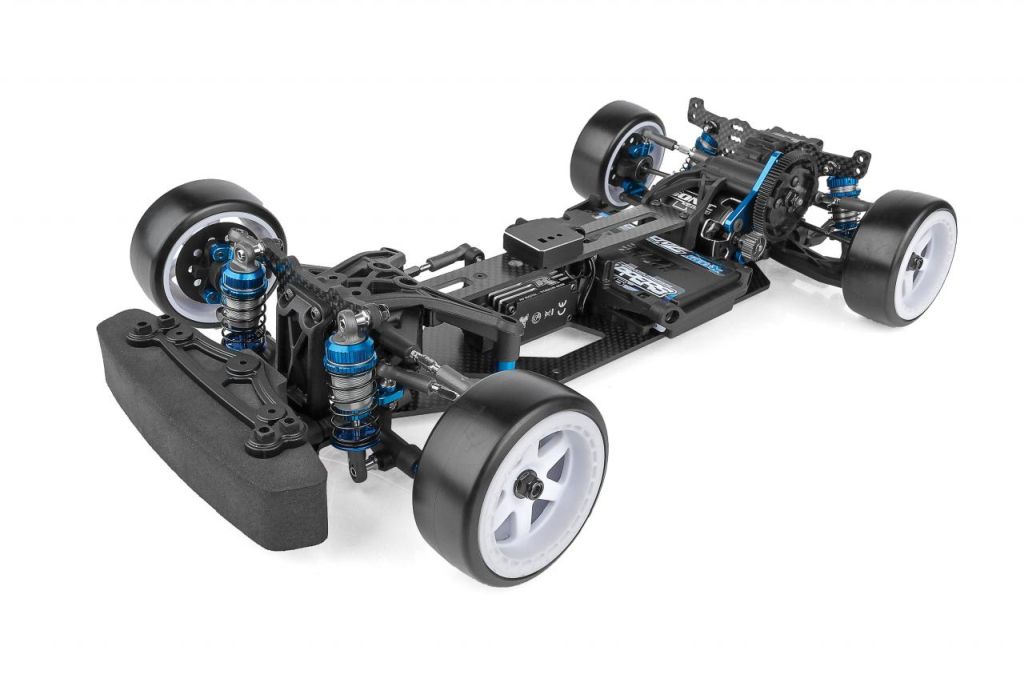

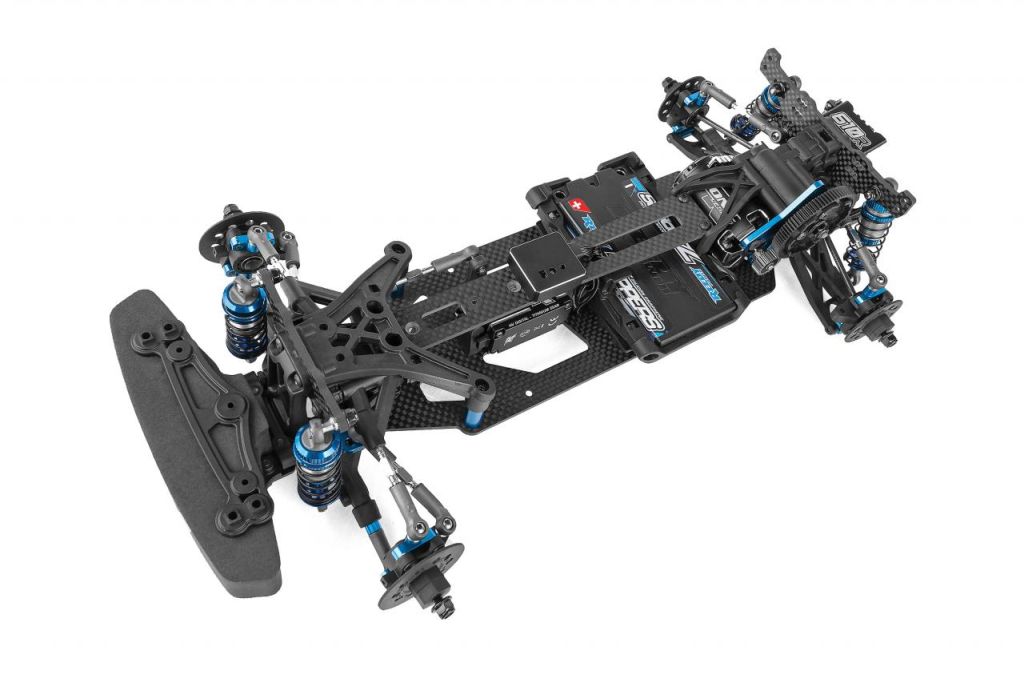

DC10 Electric 1/10 2WD Drift Car Kit
Since 1964, Team Associated has proven to be the leader in competition racing. And with its roots in on-road racing, it makes sense that our Area 51 engineers would develop the ultimate RC drift car, the DC10. In RC drifting, vehicle balance is key. With the many suspension and chassis tuning options of the DC10, drivers can set up their car with precision. From camber, caster, and kingpin inclination (KPI), to motor and battery position, the Team Associated DC10 1:10 RWD Competition Drift Kit has it all!

Required to Complete:
1:10 scale 540-size electric motor (#27481 Sonic 540-SP5 13.5T Brushless Motor)
1:10 scale electronic speed control (#27016 Blackbox 610R Competition ESC)
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height) (#27397 Reedy Zappers SG5 LiPo 4000mAh 130C 7.6V LP Shorty)
Drift Steering Gyro
Radio control battery charger (#27203 Reedy 1416-C2L Dual AC/DC Competition Balance Charger)
2-channel RC car surface transmitter and its batteries
2-channel receiver
Steering servo (#27154 Reedy RS1606A Low-Profile Hi-Speed HV Servo)
Pinion gear (48 pitch)
Spray paint for Lexan body
1:10 scale wheels and tires
Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors (#1737), Reamer / Hole Punch, FT Wrench Set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler.

Features:
Factory Team hard-anodized threaded aluminum shocks
Factory Team 2.5mm carbon-fiber drift chassis
Factory Team 2.5mm carbon-fiber shock towers
Two Factory Team 2.5mm carbon-fiber top plate options included
Factory Team blue-anodized aluminum chassis post
High and low motor mounting options
+6mm transmission height adjustment insert allows for higher roll center and larger spur gear
Maximum steering throw for optimal control drifting through turns
Easy-to-tune caster adjustments can be made without tools
Adjustable battery placement
Fully tunable, blue-anodized aluminum Ackermann plates
Easy-to-adjust camber
Adjustable offset wheels hexes
Adjustable servo mount locations
Precision rubber-sealed ball bearings throughout
Rear mounted electronic speed control (ESC) plate
Adjustable rear anti-squat and toe-in

Specifications:
Scale: 1:10
Power: Electric
Front Width: 172mm (6.7")
Rear Width: 180mm (7")
Wheelbase: 257mm (10.1")
Transmission Ratio: 2.6:1
Drivetrain: RWD/2WD
Environment: Drift Track
